Wiper Linkage Parts for Jeep CJ7
Wiper Motors, Arms & Washer System for a Clear View (1976-1986).
Why the CJ7 wiper motor and linkage suffer inside the windshield frame.
On the CJ7, the wiper motor isn't tucked away in the engine bay. It is mounted outside on the fold-down windshield frame, and the linkage runs from there through the frame to the passenger side. That position is exactly what makes the system vulnerable: rain, road spray and salt get into the frame and the motor housing, the pivot points corrode, and the motor works against growing resistance until its brushes and gears wear out. If you often drive with the top off, the wiper blades and washer bottle also take UV exposure and heat. The rubber hardens and chatters, and the plastic turns brittle. When replacing the motor, check the plug first: up to 1983 the CJ7 used a 3-wire wiper motor, from 1983 on a 4-wire unit. Since wipers and washers are part of every roadworthiness inspection, a working system on a CJ7 is no minor detail.

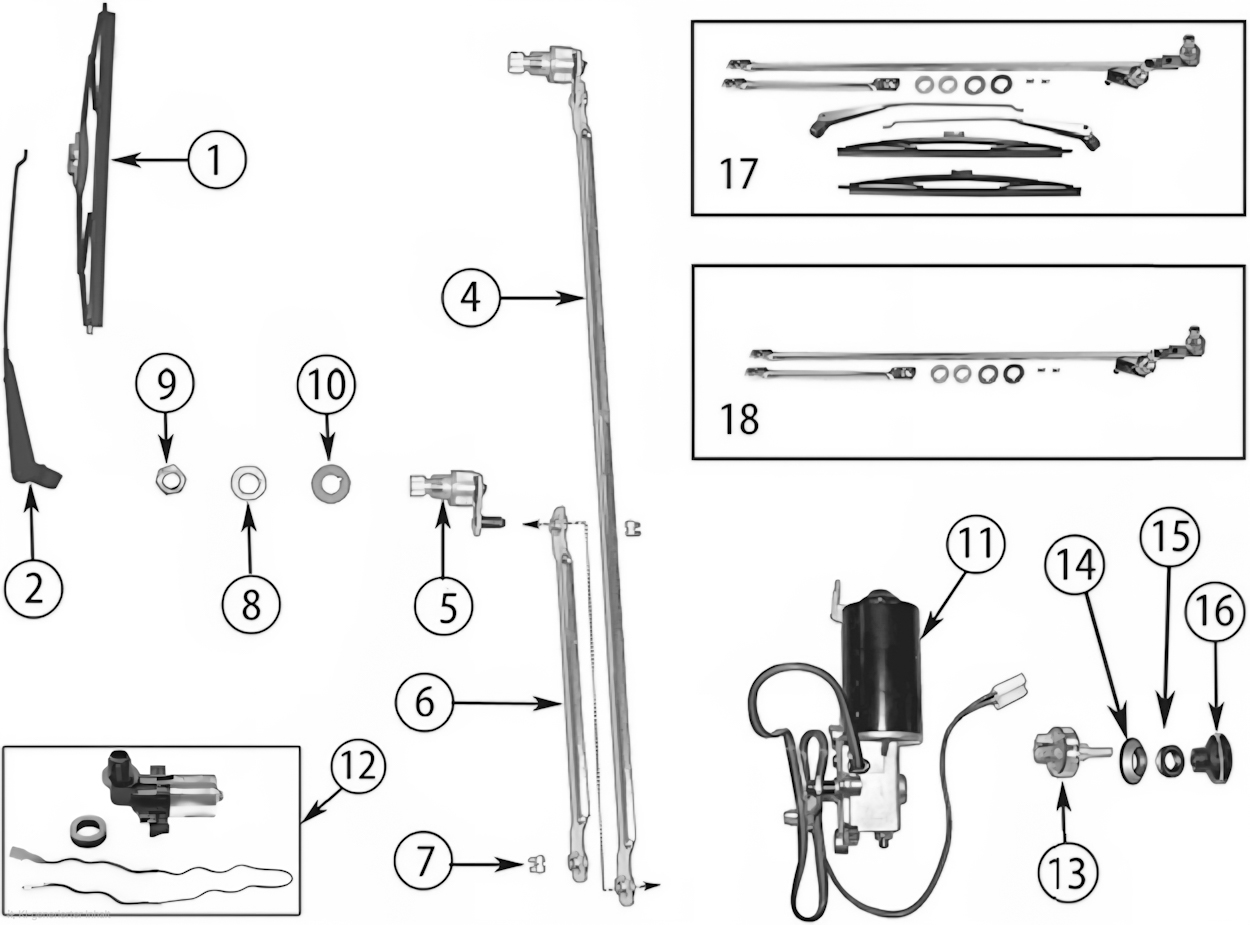

From an 11-inch wiper blade to a complete wiper motor
- Wiper motors: Depending on the model year, the wiper motor with 3-wire plug for 1976-1983 or the wiper motor with 4-wire plug for 1983-1986.
- Wiper arms: The classic wiper arm for left or right, a single stainless steel wiper arm, or the stainless steel wiper arm pair for both sides.
- Wiper blades (11" / 280 mm): The black single wiper blade, a wiper blade pair, or a stainless steel wiper blade to match the stainless arms.
- Washer system: The washer pump with wiring and connector as a single replacement, or the washer reservoir kit including pump, cap and filter.
- Linkage & controls: The spacer ring between linkage and motor shaft and dash pull knobs for the wiper switch in billet aluminum and black billet aluminum.
Twelve parts from Crown, the washer bottle from Omix.
Nearly the entire range comes from Crown Automotive. The wiper motors, arms and blades, the washer pump, the spacer and the dash knobs are all made by this US specialist, which focuses entirely on Jeep replacement parts. The washer reservoir kit with pump, cap and filter comes from Omix, another American brand with a focus on classic Jeeps. That keeps your CJ7 on the US parts it was engineered around.
From plug type to torque specs: support for your CJ7 wiper system.
Not sure whether your CJ7 still has the 3-wire or already the 4-wire wiper motor, or whether an arm and blade go together? Send us a photo of the plug or your VIN. We'll check compatibility and help with the installation sequence and torque values on the windshield frame. Your order ships quickly from stock in Germany, so your Jeep has a clear view again soon.
