Dana 300 Transfer Case Parts for Jeep CJ5
Shafts, Bearings, Seals & Small Parts for Your Transfer Case (1980-1983).
Why the Dana 300 Transfer Case in the Jeep CJ5 Wears Out Over the Years.
The Dana 300 transfer case replaced the weaker Dana 20 in the Jeep CJ5 in 1980 and remained in use until production ended in 1983. With its straight-cut gear set instead of a chain, it was considered significantly more rugged and was later even used in military vehicles. Still, this transfer case isn't immune to wear: the input and output shaft gears and bearings wear from constant power transfer, while seals and housing gaskets harden with age and start leaking. The shifter boot cracks from vibration and UV exposure, the shift knob loosens, and the shift linkage bushings wear, leading to imprecise gear selection. Transmission mount bushings and bolts also fatigue over time, letting the transfer case run rough. Regularly checking oil level, noise, and leaks protects axles and driveshafts from follow-on damage and keeps your CJ5's off-road capability intact.

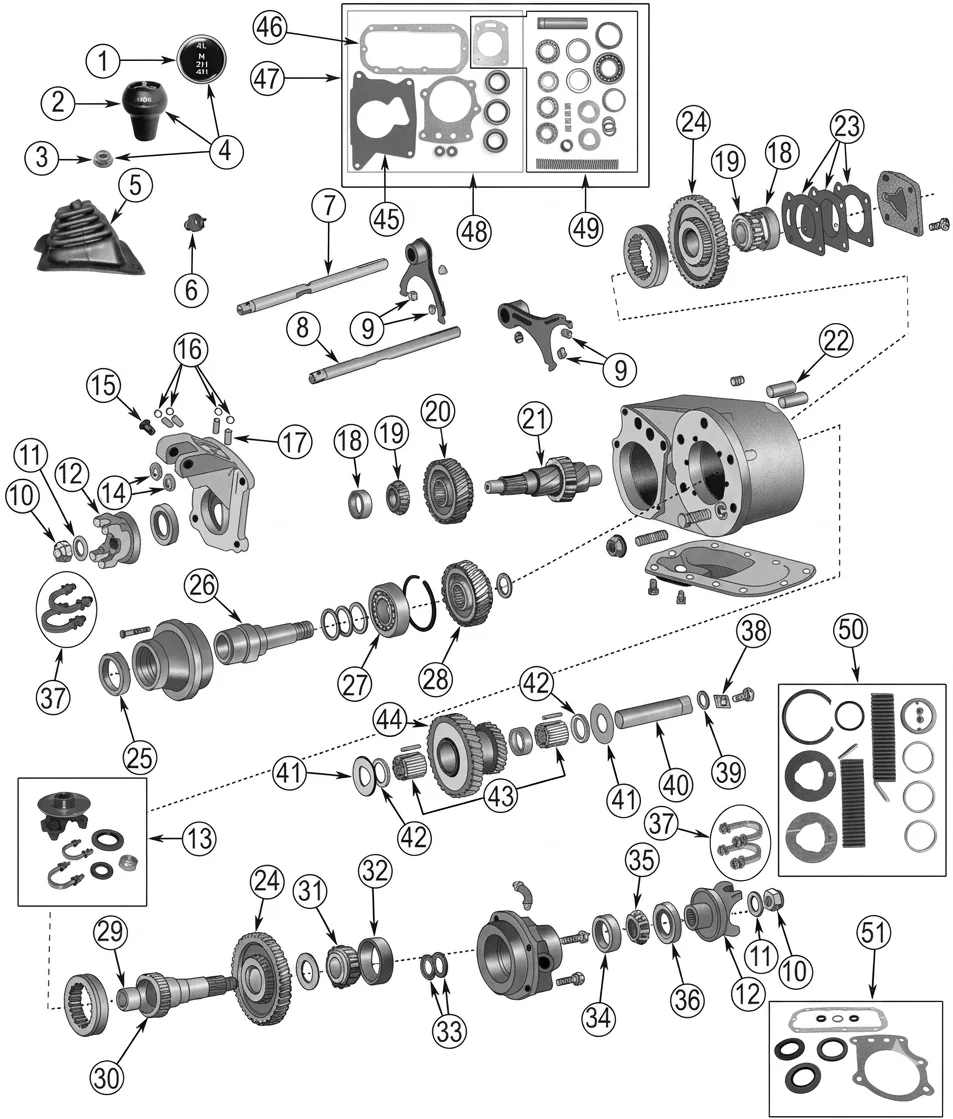

- Intermediate Shaft & Gears: The intermediate shaft and the input gear transfer full engine power.
- Shafts & Bearings: The output shaft and the input shaft bearing keep the output running true.
- Seals & Gaskets: The complete gasket kit and the input oil seal reliably prevent oil loss.
- Shifter & Small Parts: The shifter boot and the shift knob kit refresh the complete shift linkage.
- Yoke & Driveline Connection: The yoke kit and the u-joint strap cleanly connect the transfer case to the driveshaft.
- Mounting & Insulators: The transmission mount bushing and the mount insulator bushing dampen vibration and support the case.
American Precision Parts for Your Transfer Case.
Gears, shafts, bearings, gasket kits and shifter components come almost entirely from Crown Automotive – the specialist for Jeep drivetrain parts with an American manufacturing heritage. Yoke kits and u-joint straps are supplied by Dana Spicer, the original manufacturer of the Dana 300 itself. The shift linkage boot comes from Omix, the transmission mount from Daystar – both also US-made.
Your Partner for the Dana 300 Overhaul in Your CJ5.
Whether you need a single gasket or a complete transfer case overhaul, we're happy to advise you on assembly order, torque specs, and the correct oil fill, including compatibility questions for the earlier Dana 20. Shipping from our warehouse within the next business day.
