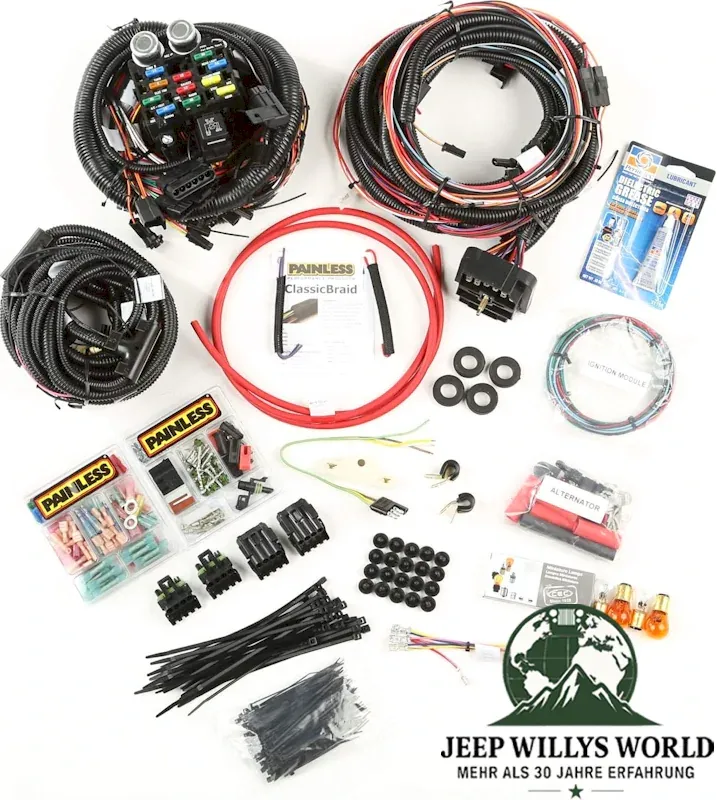

Wiring harness incl. fuse box Painless Jeep CJ 76–86

Wiring Replacement Factory Style for all Jeep Models 1976 - 1986

Compatible with:
Jeep CJ5 76-83
Jeep CJ7 76-86
Jeep CJ8 81-85

High-quality pre-assembled factory-replacement wiring harness from Painless

This wiring harness is not designed for computer-controlled systems. Certain components-such as some sensors, the alternator, the solenoid, the speedometer resistor, and the load resistor-are not pre-terminated.

Almost every circuit in this harness is divided into three separate branches at both ends. All wires are color-coded, clearly labeled, and pre-cut to specific lengths.

The fuse block is fully wired at the factory and machine-crimped.

Painless uses an OEM-style bulkhead connector that mounts to the firewall without the need for special brackets or modifications.

This harness includes circuits for:
- A/C & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Relay Activation / Accessory Power
- Starting
- Tail Lights and Trailer Lights
- Turn Signals
- Under Hood Light
- Wipers and Washer Pump

Including Wires for:
- Brake Warning Light
- Dash Label Lighting
- Four Wheel Drive Light/Indicator
- Fuel Gauge
- Gear Indicator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter

This high-quality reproduction is precisely manufactured to meet OEM specifications. Perfect for restoration, repair, or maintenance of your classic vehicle.

Ideal for the restoration, repair, or maintenance of your historic vehicle.

Reference numbers: 17202.04, 10150, 90513

Please check vehicle and model year compatibility before ordering.

A quality product by Painless Performance Products
